Ethernet Technology
The PoE Switch ANT-MCPO1004 provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.
Product Features
◆
IEEE 802.3at power on up to 4 ports
◆

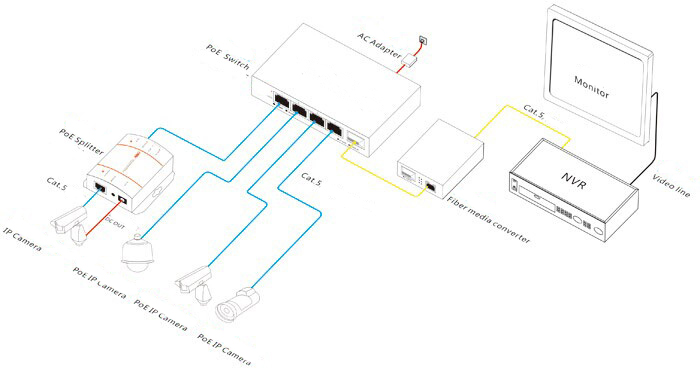

Supply power to wireless access points and surveillance cameras over Cat-5
cabling
◆ 4
10/100 Mbps Ports with AutoUplink™
◆The
5 port is optical fiber SC interface of 155 Mbps
◆
Supports PoE power up to 30W for each PoE port
◆
Supports PoE power up to 110W for all PoE ports
◆
Supports PoE IEEE 802.3at compliant PDs
◆
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for
Half-duplex Mode
◆
1K entry MAC address table with auto-learning and auto-aging
◆
LED indicators for monitoring power, link, activity and speed
◆ External power adapter supply
